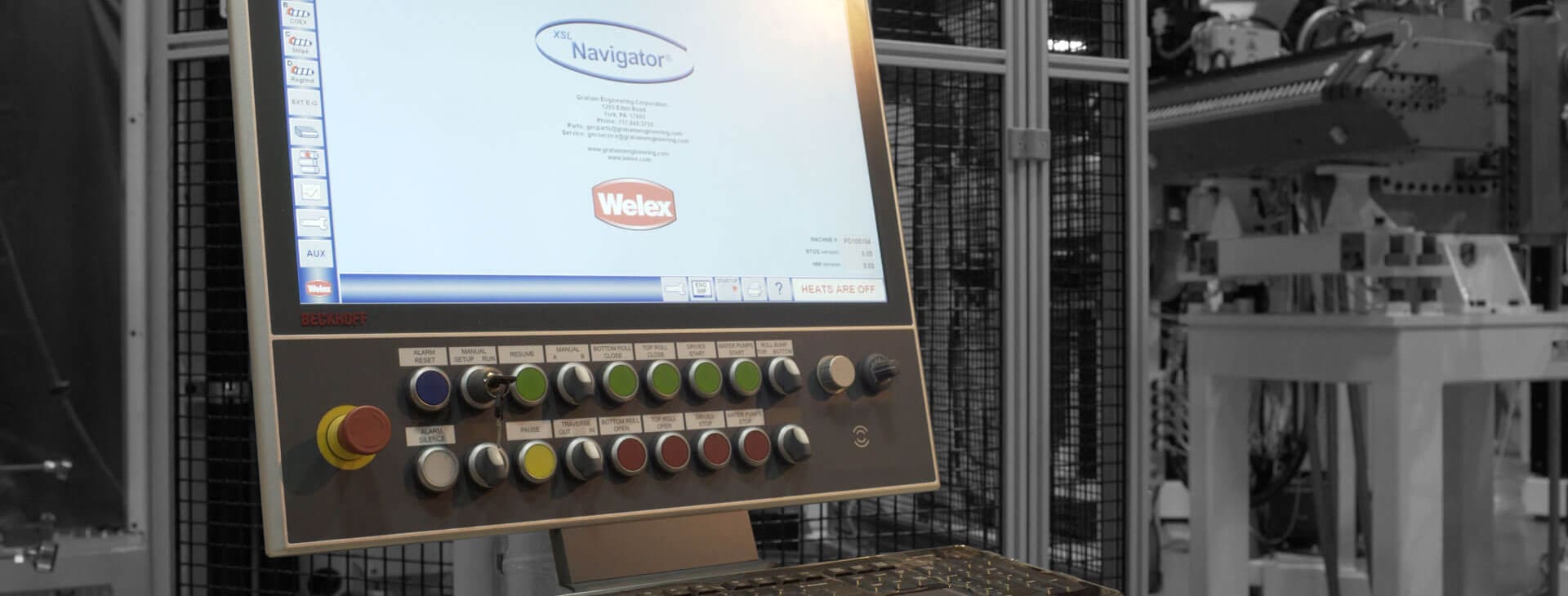

XSL Navigator Sheet Extrusion System Controls

Contact Us

Graham Engineering’s XSL Navigator is adapted from the trusted Navigator control system. The XSL Navigator machine control platform provides efficient operation and intuitive process control for Welex sheet extrusion machines. This control platform utilizes an industrial PC with TwinCAT automation software for a powerful, feature-rich control system and effortless, user-friendly operations.

FEATURES

  • Open Control Architecture
  • Customized Beckhoff CP3921 multi-touch control panel
  • Real-time graphical display
  • Industrial PC with Windows Platform
  • Intuitive color scheme
  • Four unique levels of access control
Request A Quote Contact Us

Customized to Your Needs

The Graham XSL Navigator is modular and customizable. Our decades of expertise and innovative technology combine to create the exact Sheet Extrusion Controls system you need for effective, reliable operations for years to come.

Take a Closer Look

What Makes the XSL Navigator Different?

The XSL Navigator is created for effortless operation: it’s easy for operators to set up and work easily with the machine.

The XSL Navigator enables processors to integrate data from a machine or line to an ERP system using client-server architecture.

It’s flexible and scalable with open architecture to make it fast and easy to integrate with any downstream equipment.





Download a Product PDF >

Integrated Trend Tracking

  • Monitor the sheet extrusion process in real time
  • Export data for other SPC or plant monitoring packages

Remote Diagnostics

  • Reduced or eliminated travel costs
  • Same day resolution for many issues
  • Software and capabilities integrated as standard
  • Troubleshooting, machine diagnostics, and software updates made simpler

Compatability

Evolution®

While packed with standard features, the Evolution® sheet extrusion system is also flexible to be custom engineered to suit your specific application.

Hercules®

For thick gauge sheeting systems, the Hercules® sheet extrusion system also comes packed with standard features but is able to be custom engineered to suit your specific application.

Navigator®

Imitated Often. Duplicated Never.

Navigator Extrusion System Controls

Intuition, integrated:

With Graham Engineering’s Navigator, you’re never more than two touches away from any screen. Imitated Often. Duplicated Never.
